Introduction.

For most collectors, pre-CBS (pre-1966) Fender vintage guitars and amps are the desirable ones. Although CBS purchased Fender (officially) on January 3rd 1965, it took some time till the guitars changed (though by mid 1964, six months before CBS bought Fender, things were already "on the way down"). By the end of 1965, the general look and feel of the Fender guitars had changed significantly. All collectors feel the quality of their instruments and amps suffered as CBS employed more "mass production" manufacturing processes to the Fender guitars. The "large peghead" (starting in late 1965) as used on the Fender Stratocaster was one example of the (bad) changes to come. The "custom contoured" bodies Fender was famous for no longer were as sculped and sleek. Newer (and less attractive) plastics were used for the pickguards. Pearl fingerboard inlays replaced the original "clay" dots. Indian rosewood replaced the beautifully figured Brazilian rosewood on the fingerboards. And by 1968, polyurathane replaced the original nitrocellulose lacquer that was used from Fender's conception. By early 1971 the party was truely over. Fender now employed the infamous "3 bolt neck" and one piece die cast bridge on the Strat, ruining it's tone and feel. Many other models suffered the same miserable fate of being over mass-produced and cheapened by corporate zellots.

Because of this, Fender's most innocent era of the 1950's is their most collectible. This decade produced guitars with one-piece maple necks, single layer pickguards, thin "spaghetti" logos, and tweed cases that seem to capture collectors the most.

The early 1960's Fenders with "slab" rosewood fingerboards are also collectible, but not to the extent of the earlier 1950's maple-neck era. Of the rosewood fingerboard models, the "slab" fingerboard (1958/mid-1959 to July 1962) variants are more desirable than the "veener" fingerboard (August 1962 and later) pre-CBS models. The "transistion" era (late summer 1964 to December 1965) are the least collectible of the pre-CBS models. This era is known as a "transition" because later summer 1964 to December 1965 was the time when there was a transition from the Leo Fender management to CBS management, and mass-production manufacturing techniques were starting to take a firm hold.

By 1966 (a year after CBS bought Fender), CBS management had really taken hold of Fender's production facilities and incorporated many changes. The sum of of all these changes had a serious effect on Fender guitars as a whole. 1966 brought an era of "large" pegheads, less contoured bodies, and much higher production numbers. CBS looked for ways to cut production time and costs, which generally led to much lower quality. Because of this, 1966 and later Fender instruments are considered far less collectible than vintage pre-CBS Fender guitars.

The Guitar Models.

The Esquire was Fender's first electric spanish guitar. Originally introduced in June of 1950 as a black (and later blond), one or two pickup model, it was discontinued by Fender's marketing arm in September 1950. Only about 50 of these original Esquires were shipped, though Fender had a backorder of hundreds of units. And many came back to Fender to have the neck (and body!) replaced because of neck warpage, from the lack of a truss rod. In October 1950, the Broadcaster replaced the Esquire as their two pickup electric spanish guitar, with a truss rod! The Esquire was re-introduced in early 1951 as a single pickup version of the Broadcaster. The 1951 and later Esquire, because of its single pickup, does not have the value today of its two pickup brother, due to its limited tonal range with one pickup. By February 1951, the Broadcaster was renamed the Telecaster (though the guitars didn't actually have a "Telecaster" decal on them until the summer of 1951), because of a naming conflict with a trademarked Gretsch drum line.

The Fender Stratocaster (and Telecaster) from the 1950's put the solidbody electric guitar on the map. The Stratocaster was like no other guitar ever produced. With three pickups, a contoured body that made playing guitar comfortable, and a tremolo built-in and designed correctly for the guitar, made it an instant sucess. Even today, nearly 50 years later, the Stratocaster is the electric guitar by which all others are judged.

From country, to rock and roll, to surf music, Fender found a niche with its instruments. Especially different for the era was those Fenders with Custom Color finishes. Hence they are more valuable than the standard finish (usually Sunburst, or Blond for the Telecaster/Esquire).

The Jazzmaster, introduced in 1958, became Fender's "top of the line" instrument (though today's vintage guitar market does not hold this view; it's clearly a 3rd class citizen behind the Strat and Tele). Fender truely thought the Jazzmaster would make a sensation in the jazz scene. Instead, it became the main instrument of many Surf-guitar bands of the 1960's.

Likewise, in 1962 Fender introduced another "top of the line" instrument called the Jaguar. Again, this model quickly lost popularity, starting in 1968 with decreased sales. The short scale length of the Jaquar was one of its major flaws. Finally the Jaguar and Jazzmaster were discontinued by 1975 and 1982, respectively. Before the death of Kurt Cobain of Nirvana, interest had revived in these models, though no were near the level of Strats and Teles. Now most collectors interested in these models do so because they can not afford a vintage Strat or Tele.

The Low-end Fender solidbodies such as the DuoSonic, MusicMaster, and the Mustang are not collectable and are considered student models. Even with the recent popularity of the Mustang, it's still a short scale, entry level instrument. All these instruments share that basic problem of a shorter scale length, and lower quality electronics.

The Bass Models.

Fender hit another home run with the Precision Bass, the first fretted electric bass. Still today, it's the standard by which all basses are judged. Early P-basses (late 1951 to mid 1957) are collectable, but not as much as the models from mid-1957 to mid-1959 with split coil pickups, aluminum pickguards, and maple necks.

Early Jazz Basses with concentric tone and volume knobs are also very collectable, along with the three knob configuration pre-CBS Jazz basses. Until the late 1980's, the P-bass sound was more desirable by players than the J-bass. But by 1990, the sound and feel of the J-bass had become preferred.

The Amp Models.

Tweed covered Fender amps are very collectable. The more powerful tweed amps with multiple speakers are the most valued by collectors and players. The tweed Bassman with four 10 inch speakers and four inputs (1957-1960) is considered by many to be the finest guitar amp ever made.

Brown and white tolex amps (1960-1963), and some "black face" models (1964-1967) are highly regarded by players. "Silverface" and later models (post 1967) are fine utility amps, but have no collectable value.

General Fender Parts and Detail Specs

Left: 1950 to 3/62 style pencil-written neck date at butt of neck.
Note the initials before the date were consistent till about 1954,
and were sometimes there till they completely stopped around 1956.
Right: 3/62 to 1969 style stamped neck date at butt of neck. The "2"
before the month indicates the guitar model, NOT the day of the month!

The body and neck dates on a 1956/1957 strat. The body date
(right) is in the middle pickup cavity on this guitar.

The body date on a 7/57 Telecaster, under the lead
pickup. The body date on the Telecaster moved from
the neck pocket to under the lead pickup around 1954
or 1955. Consistently by 1956 it usually appears
under the lead pickup.

Fender Body Dates, 1950 to present.
The earliest models (Broadcaster, NoCaster, Telecaster) had a body date under the neck, in the neck pocket. But by 1954 or 1955, this date moved to under the lead pickup (but didn't show up consistently in this spot until 1956). Stratocasters also had variable body date positions. Usually they are seen in the rear tremolo cavity (if the Strat is a tremolo model!). But it is also common for the body date to be under the middle pickup. For all models, by about 1963 or 1964, body dates were rarely used.

Fender Neck Dates, 1950 to present.
From the first solidbody guitars to 1976, Fender dated their instruments at the "butt" of the detachable neck. Here is a timeline of the format the dates, and how they were printed:

• 1950 to 1954: Penciled by hand below the truss rod adjustment at the butt end of the neck usually in M-D-YY format. Many times the initials of the woodworker were also indicated, such as "TAD" or "TG" for Tadeo Gomez.
• 1954 to 1959: Penciled by hand below the truss rod adjustment at the butt end of the neck in M-YY format.
• Early 1959: Due to a complaint by a Fender customer as to an obscentity written on the neck butt, no markings were used for the first part of 1959. I've seen dates of 6-59, so they started using them again at least by mid-year.
• Mid-1959 to March 1962: Penciled by hand below the truss rod adjustment at the butt end of the neck in M-YY format.
• March 1962 to 1965: Ink stamp in dark blue or red ink below the truss rod adjustment at the butt end of the neck in "XX MMM-YY W" format. The "XX" is not the day of stamping. Instead it is a code for the type of neck (for example, "02"=Stratocaster). The "W" is the neck width where "A" is the narrowest, "B" is normal, and "C" is the widest.
• 1966: the model number (the number stamped on the neck before the month) change (for example, "13"=Stratocaster).
• 1969: new type of neck stamp consisting of 6, 7 or 8 digits was used on some models. This new stamp was usually green ink. An example of this type of neck code is "529129B". The new green stamp was used concurrently with the previous "XX MMM-YY W" format. So a neck could have either code system! The model numbers change yet again (for example, "22"=Stratocaster). See below for more info.
• 1972: Fender changed to yet another new type of neck stamp which had 8-digits. This was stamped in green or red ink. A example of this is "02033923" found on a Jazz Bass. From 1972 through about March 1973, this new system was used concurrently with the previous "XX MMM-YY W" format. Again, a neck was stamped with either the new or the old date stamp, but not both. The model numbers change yet again (for example, "09"=Stratocaster). See below for more info.
• April 1973 to 1980: After March 1973, Fender dropped the old style date stamp and continued to use the new style, 8-digit code. See below for more info.
• 1976 to present: All non-vintage reissue instruments have the serial number printed in the decal on the face of the peghead. The approximate year of manufacturer can be determined from this (see serial number section below). Sometimes a date is also stamped or pencil written on the butt of the neck. Vintage reissue instruments have the date on the butt end of the neck as was used during the time period being reissued.
• 1980: Small adhesive labels with Month-Day-Year date stamps appeared in the neck pocket, pickup cavity and/or back of the neck.

The 1969 to 1980 Neck Stamps.
This information was documented and written by Greg Gagliano, and was published in a 1998 article in 20th Century Guitar magazine.

About 150 Fenders made between 1967 and 1980 were examined. Of these, less than half had useable information. In most cases, the stamp was smudged beyond legibility or the stamps were incomplete. Many guitars had no stamped codes at all. Some guitars simply had the model name, such as "MUSTANG" stamped on the butt end of the neck in green or red ink.

This means two things for the owner of a 1969 to 1980 Fender. First, the chances of having an intact stamped code is about 50/50. Second, the dataset for making conclusions is relatively small and therefore, subject to change as new information surfaces. However, the interpretation of the two date code systems appears to be relatively straight forward and the conclusions were confirmed by pickup dates and pot dates in most cases.

The 1969 to 1971 Neck Stamps Explained.
This information was provided by Greg Gagliano. The neck stamp used from 1969 to 1971 can be extracted by working from the outside inward. For example, let’s take Telecaster Thinline (s/n 272207) with the code: 3320119B. Starting a the right we have the letter B. This appears to be the same neck width code that Fender had been using since 1962. The next digit denotes the year, in this case 9 = 1969. The next one or two digits denote the month, in this case 11 = November. The first one or two digits of the code, in this case 3, denotes the model. For Telecasters, Telecaster Thinlines, and Esquires that code is 3. For Stratocasters it is 22 and for Precision Basses it is 5. The other three digits (320) area mystery and perhaps are some kind of batch or lot number.

Here’s our P-Bass again (s/n 277983) with the code 529129B. Breaking up the code we get:

• 5 = code for Precision Bass
• 291 = batch or lot code?
• 2 = February
• 9 = 1969
• B = 1 5/8 inch neck width (correct for a ’69 P-Bass).

Here's another, a Strat (s/n 279515) with code 22384109B. Break it into pieces:

• 22 = code for Stratocaster
• 384 = batch or lot code?
• 10 = October
• 9 = 1969
• B = 1 5/8 inch neck width

Exceptions do exist. A few Telecasters have shown up with neck codes that would indicate a 1967 date and one has been reported with a possible 1968 date, yet the rest of the guitar appears to be from 1969. If Fender used the coding system as early as 1967, then we should see more 1967 and 1968 guitars surfacing with the green stamped code. One explanation is the use of leftover necks. Fender is known to have done this often.

1972 to 1980 Neck Stamps Explained.
This information was provided by Greg Gagliano. The 1972-1980 eight digit code is similar to the previous 1969-1971 system. Example, Music Master (s/n 595121) with code 49002153. The first 6 digits are paired off and the last two digits are taken singly. So that gives us 49 00 215 3 where:

• 49 = model code (Musicmaster, Mustang, Bronco)
• 00 = neck code (rosewood fingerboard)
• 21 = week code (week 21)
• 5 = year code (1975)
• 3 = day of the week code (Wednesday)
Model Codes Used from 1972 to 1980.
Model codes (first pair of digits):
• 01 = Precision Bass
• 02 = Jazz Bass
• 04 = Mustang Bass
• 08 = Telecaster Deluxe
• 09 = Stratocaster
• 13 = Telecaster, Telecaster Custom, Telecaster Thinline
• 49 = Musicmaster, Mustang, Bronco

Neck Codes Used from 1972 to 1980.
Neck codes (second pair of digits):

• 00 = rosewood fingerboard
• 01 = rosewood fingerboard
• 03 = fretted maple neck OR skunk stripe neck with rosewood board
• 10 = fretless maple neck

Now try and decode a Precision Bass (s/n 647149) with code 01031051. You should get:
• 01 = Precision Bass
• 03 = fretted maple neck
• 10 = Week 10
• 5 = 1975
• 1 = Monday

Here's a Telecaster (s/n S725092) with rosewood fingerboard and code 1303167?.

• 13 = Telecaster
• 03 = rosewood fingerboard on skunk stripe neck
• 16 = Week 16
• 7 = 1977
• ? = day unknown as digit was illegible

Differences between the end of a Telecaster and
Stratocaster neck. Note the Tele neck on the left
has a straight end, and the Strat neck on the right
has a rounded end. The bodies and pickguards are
cut differently to accomodate this.


Style of Strat pegheads and logos from 1954 to 1980.
Shown is the "spaghetti" logo, the "transition" logo,
and the "black" logo on a large peghead. The Large
peghead style started in late 1965 on the Strat, and
lasted throughout the 1970s.





Peghead Shapes

• Telecaster/Esquire: consistent peghead shape from 1950 (Broadcaster) to present, except on the "Telecaster Deluxe".
• Stratocaster: "small" peghead shape from 1954 to end of 1965. At the very end of 1965 Fender enlarged the peghead shape. This "big head" size was used till 1980.
• In 1980 Fender changed back to the small Strat-style peghead design on most models (except the Tele).

Top: the "transistion" logo as
used on a Custom Telecaster
starting about fall 1964.
Bottom: the "spaghetti" logo as
used on a Custom Telecaster
in 1959.


Peghead Decals
• Telecaster/Esquire: thin "spaghetti" logo (silver with black trim, except for 1952 to 1955 Esquires which were gold with black trim) from 1950 (Broadcaster) to late 1965. Larger "transition" logo used from late 1965 till 1967. Thick "black" logo was used from 1968 to 1980. The Tele Custom and Esquire used the "spaghetti" logo from mid-1959 to late 1960's (stock not depleted till later).
• Stratocaster: thin "spaghetti" logo from 1954 to fall 1964. Larger gold "transition" logo from fall 1964 till 1967. Thick "black" logo from 1968 to 1980.
• Pbass, Jazzmaster: followed same trend as the Stratocaster.
• Jazzbass: from 1960 to 1967 the Jazzbass always used a "transistion" style logo. Switched to the thick "black" logo in 1968. Note Jbass never used a "spaghetti" style logo.
• In the 1980's Fender changed back to using "transition" and "spaghetti" logos, depending on the model.

Peghead Decal Pictures.
The following are scans of most Fender decals used from 1950 to the late 1960s. These are all original, unapplied decals. Note decals from the 1970s are "backwards" (reversed). For comparison, I have "unreversed" the pictures so the text is not backwards. Picture from Jim Shine.

• Strat, 1954 to 1966.
• Strat spaghetti decal repro vs. original
• Strat transition decal repro vs. original
• Esquire, 1950 to 1968.
• Custom Esquire, 1959 to 1968.
• Custom Telecaster, 1959 to 1968.
• Jaguar, 1962 to 1974.
• Jazzmaster, 1962 to 1975.
• Precision Bass, 1951 to 1968.
• Jazz Bass, 1962 to 1967.
• Telecaster Bass, 1968.
• Bass 6, 1961 to 1968.

Typical wear on a 1950's
Fender maple fingerboard.

Fingerboard Material
• Maple fingerboard, 1950s: from the start in 1950, Fender used a one piece maple neck with a walnut "skunk" stripe down the back (except on early Esquires with no truss rod), where the truss rod was installed. This was the standard neck on all models until 1958 (when the Jazzmaster was introduced with a rosewood fingerboard; the rest of the Fender models changed to rosewood fingerboards in mid-1959).
• Rosewood fingerboard, "Slab" (Brazilian), 1958 to 1962: from mid-1959 (1958 for the Jazzmaster) till August 1962, Fender used a "slab" rosewood fingerboard. That is, the bottom of the fingerboard was flat and the board was fairly thick. A picture of a slab board neck (as seen from the "butt" of the neck) can be seen in this picture. Also shown is the difference between reissue and original slab board necks. The Musicmaster family also used slab fingerboards (usually Indian rosewood) for about a year from Sept 1965 to Oct 1966. Slab fingerboards are also identifiable from the peghead by their "hump" line (humps toward the tuners), just above the nut.
• Rosewood fingerboard, "Veneer", 1962-1980: from August 1962 till 1980, Fender used a curved bottom rosewood fingerboard that was much thinner than the slab 'board. The veneer of rosewood got even thinner by mid 1963. Also by 1966 the rosewood changed from Brazilian to Indian rosewood. Veneer fingerboards are also identifiable from the peghead by their "dished" line (dishes toward the nut), just above the nut.
• Maple fingerboards, 1960-1968: available as special order. Different than the 1950s one-piece maple necks. These used an actual slab maple fingerboard glued to the maple neck, and no "skunk stripe" down the back of the neck for the truss rod.
• Maple fingerboards, 1969 and later: Fender's maple neck changed back to the 1950s style one piece neck with a walnut "skunk stripe" down the back.
• Rosewood Fingerboards, 1980 and later: Starting in 1980, Fender switched back to the slab rosewood fingerboard style, made from Indian rosewood (except on certain recent custom shop models).

Fingerboard Dots
• Black dots: used on maple fingerboards and made of fiberboard-like material (in the 1950's) or black plastic later.
• White dots: used on rosewood fingerboards (Jazzmaster in 1958, all other models in mid-1959). Till the end of 1964 Fender used "clay" dots as position markers. This material has an off-white opaque color. In very late 1964 all models changed to pearl dot position markers. Side markers remained "clay" until spring 1965 when these too changed to pearl.
• White dot spacing: In 1963, the spacing of the two fingerboard dots at fret twelve changed (the spacing became closer together).

Neck Back Shapes (profiles), all guitar and bass models.
Fender neck shapes have changed through the years too.

• 1950 to 1955: Fender neck shapes (all models) have a standard large and chunky "D" profile (big "baseball bat" style neck).
• 1956: Fender necks change to a large and chunky "soft V" profile.
• 1957: the "V" shape gets much stronger. This 1957 "strong V" neck profile becomes famous, and musicians like Eric Clapton prefer its shape. Some Fender necks produced have a "small strong V", where the neck isn't so big feeling, but still has a very strong "V" shape (mostly seen on Musicmasters and Duosonics, and the occassional Strat).
• 1958: the neck profile completely changes, with the "V" shape completely gone. It's back to a conventional "D" neck profile, but not nearly as thick and large as 1955 and prior neck profiles. This neck style is used on most reissue Fenders (regardless of the year being copied).
• 1959 and later: the "D" profile gets yet a bit smaller and less chunky. With the release of rosewood fingerboards on all models in mid-1959, the "D" neck profiles pretty much stay the same throughout the 1960s with only minor variance from year to year (for example, 1962 necks seem to be a bit chunkier than 1959 to 1961 necks).

Neck Width.
From March 1962 to 1969, Fender marked their necks with an "official" neck width letter at the butt of the neck (in front of the date code). The "B" neck width is the normal width, as used on about 99% of all Fenders from this period. All other sizes were available by special order only. Also all pre-1962 Fender necks have a 1 5/8" nut width (though I'm sure there are some exceptions, but none I have seen).

• A = 1 1/2" wide at the nut.
• B = 1 5/8" wide at the nut (normal size).
• C = 1 3/4" wide at the nut.
• D = 1 7/8" wide at the nut.

Neck Shims.
Shims were used between a Fender neck and body to adjust the "neck set" of the instrument (the "neck set" is the angle of the neck in relationship to the body; if the neck set is too shallow, it needs a shim so the playing action can be lowered with the bridge to a comforable level. If the neck set is too sharp, the strings can not be raised enough with the bridge to stop string buzz). Fender adjusted the neck set at the factory with a shim. Some Fenders use them, so don't. Click here for a picture of the shim used during the 1950s and 1960s.

Neck Bolt Numbers (3 or 4).

• 4 bolt neck plates: all models used 4 bolt neck plates from 1950 to early 1971.
• 3 bolt neck plates: starting in early 1971, the Stratocaster, Telecaster Thinline, Custom Telecaster, Telecaster Bass used 3 bolt neck plate (the Telecaster and Precision Bass always used 4 bolt neck plates). In 1972 the Telecaster Deluxe (from introduction) also used the 3 bolt neck plate. By late 1972/early 1973, the Jazz Bass went to a 3 bolt neck plate.
• In 1979 the 4 bolt neck plate came back to the Anniversary strat. By 1980 all Stratocaster models were again 4 bolt. And by 1981, all Fender models converted back to the 4 bolt neck plate.

Peghead String Guides (or "String Tree").
String guides were used on most models to give the treble strings greater string tension across the nut.

• 1950 to Mid-1956: Single round "button" string guide for E & B strings.
• Mid 1956: Changed to a "butterfly" string guide.
• 1959: a metal spacer is used beneath the butterfly string guide.
• 1964: the metal spacer is changed to a nylon spacer beneath the butterfly string guide during 1964.
• 1971: two butterfly clips are used for the E, B, G, & D strings on the Stratocaster, Telecaster, Telecaster Deluxe, Custom Telecaster.
• 1976: two butterfly clips on the Mustang.
• Click here to see the difference between reissue and original Fender "butterfly" string trees.

Truss Rod and Truss Rod Nut

• October 1950: all Fender guitars have a truss. Only pre-October 1950 Esquires have no truss rod. Adjusts at the "butt" of the neck by the pickups. Click here to see the difference between vintage and repro Fender truss rod nuts.
• Late 1971: truss rod changed to adjust at the peghead behind the nut with a "bullet" system on Stratocasters and Jazz Basses. Telecaster and Precision Bass keep traditional truss rod system.
• 1980: Fender starts using different truss rod systems, depending on the model.

The body routes on a 1968 Stratocaster. Note the rounded
pickup route corners, compared to the 1970's pickup routes
seen above.

The body routes on Telecasters. In the 1970's the
"notch" was removed from the bass side of the neck pocket.

Body Routes.
Initially, when the Fender Stratocaster was introduced in 1954, it had a single layer white pickguard attached with 8 screws. In mid 1959, Fender switches to a multiple layer pickguard with 11 mounting screws. One of the additional screws required a change to the interior body route on the Stratocaster. Now a added "shoulder" was left in the electronic route to accomodate one of the extra pickguard screws. Starting in the late 1960's, Fender also changed the shape of the pickup routes on the Strat. Now the corners were more square, instead of being round.

The Telecaster body also changed in the 1970's. The "notch" that existed on the bass side of the neck pocket was removed. See the picture above.

1956 to 1964 style single line
Kluson tuners on a Tele neck.

Tuners
• 1950: Fender used "single line" Kluson tuners, that had "Kluson Deluxe" stamped in a single vertical row (like 1956 and later Klusons); these are easily identified as "early" Klusons (and not 1956 and later Klusons) because "Pat Pend" is also stamped below the vertical "Deluxe" marking. These are also different because they lack the side "exit" hole for the tuner post (there is only a side "entrance" hole).
• 1951 to 1956: Fender used "no line" Kluson tuners exclusively, and were unmarked (had no brand name stamped in the tuner back).
• 1956 to 1964: Fender used Kluson tuners exclusively on all models. The only variable was the tuner tip. DuoSonics, MusicMasters, Mustangs and other low-end models had white plastic tips, all other models had metal tips. All tuners had "Kluson Deluxe" stamped vertically into the tuner back in a single row.

• 1964 to 1967: Fender used Kluson tuners, but now the "Kluson Deluxe" was stamped into two vertical rows ("Kluson" in one line, "Deluxe" in the other). Note some models (such as the Jazzmaster and Jaquar) the use of Kluson tuners ended in mid 1966 (see below).
• Fall 1965 to late 1970's: Fender had tuners made for them with a big "F" stamped in the back cover. Tuner buttons were chrome plated plastic. Note models such as the Jazzmaster and Jaquar (1966) and the Musicmaster family (fall 1965) got these tuners before Strats and Teles (late 1967/1968).
• Click here to see the different Fender tuners used from 1950 to the 1970s.
• Click here to see a comparison of vintage versus reissue Kluson tuners.
• Click here to see a comparison of vintage versus reissue Kluson tuner bushings.

Tone Capacitors

• 1950 to 1962: the tone capacitors are either big, round (sausage-like) paper caps on Teles and Esquires, or flat box-shaped paper caps on Stratocasters.
• 1963 to present: all models use a standard ceramic pancake-shaped tone capacitor.

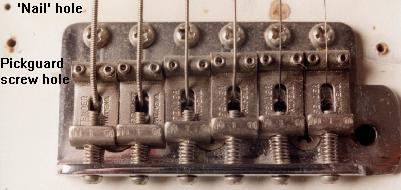

Old style (pre-1971) Stratocaster bridge. Note the nickel plated
saddles with "Fender Pat. Pend." stamped in them. Reissue saddles
look exactly the same but are stamped "Fender Fender". Also since
the pickguard is removed on this Strat, we can see the "nail hole"
just above the pickguard screw hole. If this nail hole does not
have paint in it (as seen here), the finish is probably original.

Old style Telecaster bridges. The bridge at the top is a mid-1954 and prior style Tele bridge with brass saddles, and the serial number stamped into the bridge plate (reissue vintage Tele bridge plates with serial numbers have a "dot" pressed below the third number in the serial number, so not to be confused with original Tele bridge plates). The picture below it shows the low E/A string saddle, and how it is ground flat on the bottom. The picture at the bottom is a mid 1954 to 1958 style Tele bridge with "smooth" saddles, and no serial number on the bridge plate. In 1958 Fender then switched to "threaded" saddles on the tele bridge (not shown).

Strat Bridge Saddles and Tremolo Blocks
• Bridge Saddles 1954-1971: The Stratocaster used the same bridge saddle from 1954 to 1971, a piece of steal stamped into shape. These are stamped "FENDER PAT. PEND".
• Bridge Saddles 1971-1981:In 1971 the Strat bridge changes to a less expesive saddle made of cast metal.
• Reissue vintage Strat bridge saddles are also stamped metal. But these are stamped FENDER FENDER) on the saddle. Click here for a picture.
• Recent "bogus" Strat saddles are now available in which many individuals pass-off as originals. Click here for a picture.
• Strat Tremolo Blocks 1954-1971: a separate solid piece of gray painted steel. Click here for a picture.
• Strat Tremolo Blocks 1971-1981: case metal which is now part of the bridge plate.

Pickups and Pickup Springs

• 1950 to March 1964: all models had "black bottom" pickups and cast slug alnico magnets with rounded top edges. Pickups not dated. Pickup wire is usually a real rich cooper color. Pickups are dipped in hot wax to eliminate microphonics, and this wax is evident on the entire pickup. Also the pickup screw "springs" are made out of rubber surgical tubing cut into small 3/8" long pieces.
• March 1964 to late 1970's: most models had "gray bottom" pickups and cast slug alnico magnets. Gray bottom pickups would be the rule, but black bottom pickups were used from old stock as late as 1967. Starting in the early 1970's, the top edges of the magnets were no longer rounded. Most gray bottom pickup assemblies have at least one pickup with a hand written date. By the late 1960's this changed to an inked stamped date code, much like the date code used on the butt of the neck. Most gray bottom pickups have a deep burgundy colored pickup wire. Wax treament is no longer used in favor of a lacquer dip treatment, which is much harder to see. Pickup screw springs are now actually real cone-shaped springs instead of rubber surgical tubing. Click here for a picture of gray bottom pickups (1970s). Click here for a picture of a November 4, 1964 gray bottom pickup date stamp.

Potentiometers

• Fender used mostly Stackpole brand pots in the 1950's, and CTS brand pots in the 1960's. These pots are date coded, and can help verify the authenticity and year of an instrument. The manufacturer code for CTS is 137 (or 304 for Stackpole), so this number should be stamped on the pot somewhere. Following this number is the date code in YWW or YYWW format. The "Y" or "YY" is the last digit(s) of the year, and the WW is the week. In the 1950's, YWW date format was used. For example, "137504" would be a CTS pot made in the 4th week of 1955. A code of "1376344" would be a CTS pot made in the 44th week of 1963.
• Note during 1966, CBS/Fender bought a huge supply of CTS pots. Because of this, many late 1960's Fenders have pots dated from 1966.
• Here is a picture of 1960s to 1974 CTS pots, compared to 1974 and later CTS pots. Click here.
• More info on pots can be found at in the Feature section, by clicking here.

Wiring
• 1950 to 1967: all models used "cloth" wire where the shielding is actually made of cotton. Usually the color is black for ground and white for "hot". Starting in 1965 sometimes yellow is used instead of white. Jazzmasters and Jaquars also used other colors like red and blue.
• 1968 to early 1980's: PVC plastic shielded wire is used. Black for ground, white for "hot".
• 1980's: all reissue guitars use the old style cloth shielded wire.

An original 1956 Stratocaster wiring harness and pickguard.
Notice the small metal shielding plate around the pots,
and the white single layer pickguard. At the top edge is a
early 1960's three-layer celluliod "mint green" pickguard
with it's full-size aluminum shielding plate.

First generation CRL switches from 1951 to 1954 had two patent numbers.
Second generation CRL switch used from 1954 to about 1962 have three
patent numbers. Otherwise the two and three patent number switches look
identical. Shown below is a three patent number switch.

Top: Mid 1960s to 1970s style CRL 3-way switch with round cuts.
Bottom: late 1970s to 1980s style 3-way switch.

Telecaster/Stratocaster Switches
• 1951 to 1954: Early style CRL 3-way switch with two patent numbers. Switch made of metal and a fiberous brown bakelite type material which has flat cuts.
• 1954 to 1962: CRL switch with three patent numbers. Switch made of metal and a fiberous brown bakelite type material which has flat cuts.
• 1963 to 1977: Teles and Strats still use a 3-way switch, but the fiberous brown bakelite material is replaced with a non-fiberous bakelite material that is cut round (like a half moon).
• late 1970s: Switch changes again. See picture.
• 1977 to present: Fender strats use a 5-way switch on many models.

A virgin 1960 Stratocaster pickup assembly with no broken solder joints,
"black bottom" pickups, "cloth" wire, flat box-shaped paper tone cap,
rubber pickup springs, flat edge 3-way switch, CTS pots, and an
aluminum pickguard shield all attached to a "green" pickguard.

Pickguard Material
• Black pickguards: black pickguards were used from 1950 to mid-1954 on the Telecaster, Esquire and Precision bass. This material consisted of a fiberous bakelite, and was about .060 (inches) thick. The fiberous material was added to the bakelite to add strength (bakelite is too brittle and would crack at that thickness without it). Finally the black pickguards were clear-coated with clear nitrocellulose lacquer (top side only) to give them depth and shine.
• White pickguards (single layer): starting in mid-1954 on the Telecaster/Esquire and Precision bass, and from the start on Strats in 1954. Fender used a single layer white pickguard material made from vinyl about .040 (inches) thick. This relatively new material for the time was cheap, easy to work with, and somewhat flexible. Note bakelite was never used for white Fender pickguards on any model (though many people refer to white pickguards as such; but it's not bakelite). Fender stopped using the white vinyl material in mid-1959 except on the Telecaster, Esquire and DuoSonic/MusicMaster. In this case the single layer thickness increased to .080 (inches), and was used till about 1965 (Esquires till about 1967, when all old stock was depleted).
• Multi-layer pickguards: starting in mid-1959 Fender switched to a 3 layer pickguard (w/b/w) made from Celluloid on most models. The Pbass and Jazzmaster used a 4 layer pickguard of Tortoise/w/b/w (except on certain custom colors which used a 3 layer w/b/w pickguard). These celluloid 'guards had an outer white layer with a mint green/yellow tint, thus giving them the name "green 'guard". The amount of green/yellow depends on the abuse and UV the pickguard was subject to. To some degree the effect is not only caused by age and sun, but the "felting" of the black layer below the white layer. This material was used till January 1965 when Fender switched to vinyl for their multilayer pickguards (Celluloid was dangerous and very flamable, and shrunk with time causing cracks). Sometimes these pickguards are called "nitrate 'guards" because nitric acid is one of the key ingredients used to make celluloid. The 1965 and later white pickguards do yellow a bit with age. But even aged white 'guards look much different than the older "green" 'guards. In the late 1960s, white Stratocaster pickguards change slightly (not sure about other models). Though from the front they look identical to the 1965 to 1967 variety, the 1968/1969 white Strat pickguards had a bottom layer (the layer not seen unless the pickguard is removed from the body) of "pearloid".
• Stratocaster pickguards: multi-layer Strat pickguards had a thin (.015") aluminum shield underneath the pickguard (see picture above) till 1967. Click here for a picture of the ink stamp on this aluminum pickguard shield used during the 1960s. From 1968 and later, sticky aluminum foil was attached to the bottom of the pickguard, just around the pots and switch. In the 1950's, this metal shield was much thicker (.040"), but also much smaller, only covering the area around the pots. Note reissue Strats also use these shields.
• Click here for a comparison of pickguard material used from 1962 to 1965, and a reissue pickguard.

Stratocaster Plastic Parts.
Left: The two pickup covers on the outside are vinyl plastic. The three covers on the insides are "bakelite". Note how the "bakelite" covers are whiter, and the edges have rounded. When new, the "bakelite" cover edges were as shape as the vinyl covers. But with time, the edges round only on the "bakelite" covers. They can even wear to show the black pickup itsef underneath.
Right: The top row of knobs are vinyl, the bottom row are "bakelite". Notice again how the edges of the "bakelite" knobs wear (especially on the volume knob), and the vinyl edges don't. Also the "bakelite" knobs are whiter.

Telecaster Switch Tips.
The original Daka-Ware switch tips used on Broadcasters and
Telecasters from 1950 to the 1960s. These black bakelit tips
are made by Daka-Ware, with the earliest round tips only saying
"PAT. PEND." (as seen here on the left). The switch tip on the
right is a "top hat" style switch with a 2189845 patent number
(though round switch tips can also have these markings).

Other Plastic Parts (pickup covers, knobs).
• Stratocaster: this was the first Fender model to use plastic knobs and pickup covers. From 1954 to early 1957, these parts were made from white urea formaldehyde, commonly (and incorrectly) known as "bakelite" (bakelite is actually a trade name for phenol formaldehyde, and is most commonly black or molted brown; for consistency, I will refer to these white pickup covers as "bakelite", though in fact they are not). These covers were very brittle and very white. Note early 1954 Strat knobs have a different and taller shape than late 1954 and later knobs. Since "bakelite" cracked and wore very easily, Fender switched to white vinyl parts in early 1957. These vinyl parts yellowed with age unlike the earlier "bakelite" parts. Click here for a comparison of vintage versus 1980s and later Strat knobs.
• Telecaster/Esquire: these models didn't use plastic knobs or pickup covers. But the switch tip for Telecasters was bakelite plastic. These black tips are still available today, with very minor differences. Early Broadcasters/Telecasters had round (as viewed from the top) pickup selector tips. In about 1955 this changed to the "top hat" style of selector switch tip. In either case, all original Tele switch tips have some stampings on their bottom side. The Broadcaster and early Telecasters said "PAT. PEND." on the bottom of the tip. All tips about 1952 and later say "PAT. NO. 2189845" and "DAKA-WARE CHICAGO". See the picture above. Reissue "top hat" tele switch tips have no marks on the bottom. Click here to see the difference.
• Precision Bass: this model didn't use plastic parts till mid-1957 when the pickup changed to a split coil design, and had a vinyl plastic cover. Click here for a comparison of old and new pbass plastic pickup covers.
• Jazzbass: click here for a comparison of old and new jbass plastic pickup covers.
• Jazzmaster: from the start in 1958 all plastic parts were vinyl on this model. Click here for a picture of the knob style used on Jazzmasters starting in 1965.

Body Wood.
Exceptions to the below data: the Rosewood Telecaster, the Walnut strat, Thinline Telecasters, etc.

• October 1950 to mid 1956: All models used Ash as the body wood. Most ash bodies are two or even three pieces, but sometimes a one-piece body was used.
• Mid 1956 to current: All models used Alder as the body wood. The ONLY exception to this is if the model had a "blond" finish. In that case, the body would was ALWAYS Ash. For example, since the stock finish on a Telecaster is "blond" (a translucent white color), all blond Telecasters are made of Ash. If a post-1956 Stratocaster was ordered in blond, it too would be Ash. To summarize, if the Fender instrument is later than mid-1956, and was originally not blond in color, the body wood should be Alder! Most alder bodies are 2 to 4 pieces. Alder trees do not grow "big", so multiple pieces were used for Fender guitar bodies. The number of pieces has little effect on sound or value.
• 1963-1964: a few models made with Mahogany bodies.
• 1990-current: Most Japanese Fenders (and some US made models) use a Basswood body.
• 1992-current: Some Mexican made models use Poplar bodies.

Left: a 1966 Custom Telecaster with the "target 'burst" style
sunburst. Starting in mid-1964, Fender sprayed the yellow part
of the sunburst. This allowed Fender to be less picky with their
choice of Alder, because the sunburst is less transparent.
Right: a 1959 Custom Telecaster with the old style Fender sunburst.
Prior to 1964, Fender stained the yellow of the sunburst into the
wood, instead of spraying it. This saved a spray step when shooting
a sunburst finish.

Finishes.
There is a lot more info on Fender finishes here.
• 1950 to 1967: Fender used nitrocellulose lacquer for all finishes. Film thickness was very thin, especially in the 1950's. From the beginning, Fender would hammer nails into the face of the guitar body before painting, under the pickguard areas. Then the body was painted on a "lazy susan". First the face of the guitar was painted. Then the body was flipped over onto the nails (which suspended the freshed painted body face), and the back and sides of the body were painted. The nails were then used to suspend the body while the paint fully dried. After all the paint was sprayed, the nails were removed. Hence all original pre-CBS Fender bodies will have "nail holes" (with no paint in them!) under the pickguard or control plates.
• Mid 1956: Fender started using Alder (instead of Ash) as the main body wood for all models that were not finished in Blond (which means the Telecaster stayed Ash). They did this because it was easier to paint Alder (it required less paint steps). All Alder bodies were dipped in a yellow stain, which was the first step in the sunbursting paint process (sunburst was Fender's primary color on Alder bodies, hence all Alder bodies were prepped this way, regardless of what color they were actually painted).

This Strat has a neck date of December 1964, and still has the "nail holes" under the pickguard. The nails holes were pretty much gone by fall of 1964.

• Late 1962/early 1963: Fender now bolted a "stick" inside the body's neck pocket (to the two bass side neck screw holes) prior to painting. The stick allowed the body to be easily held by the painter while spraying paint and drying. This left a visible paint stick shadow inside the neck pocket. Fender used this technique into the 1970s. The nails were still used, but now only for the drying process (and were no longer needed during painting). Still, the "nail holes" will be present (with no paint in them!) under the pickguard or control plates of original Fender bodies.
• Mid-1964: Fender changed how they sprayed a sunburst finish. In early 1964 and before, the yellow part of the sunburst was stained into the wood. This meant Fender only had to spray two colors (red and brown) instead of three. But in mid-1964, Fender changed to spraying the yellow portion of the sunburst finish. This made the finish less transparent, and allowed Fender to use Alder body wood with minor defects (such as mineral stains). The 1964 and later sunburst finish colors didn't blend together as nice and don't show much wood grain, and hence are sometimes called a "target 'burst". Also by the fall of 1964, Fender no longer hammered nails into the body prior to painting. They instead used the paint stick to suspend the body while drying.
• 1968 to 1980: Fender used a "thick skin" polyester finish. Later "thick skin" finishes got really thick in the 1970's, resembling a bowling ball. But all polyester finishes are very thick and glossy compared to the early lacquer finishes.
• 1954 to late 1960's: Fender also made available Custom Color finishes. These finishes were special ordered for an additional 5% cost.

A 1962 Jaquar in the very rare, top-of-the line molded form-fit case.

Fender Cases
Note that the following case descriptions concerns mostly U.S. sold guitars. Fenders distributed in other countries were often shipped without cases. The reason: the foreign distributor felt they could get cases locally and less expensively. Canada and Europe are perfect examples of this. Until the mid 1960's, most Canadian imported Fenders were sold with a Canadian case.

Note: the following info does not apply to student model Fenders such as the MusicMaster and DuoSonic. The interior material of these cases generally will match the descriptions below, but the exteriors will not. The exterior of these cases in the 1950's didn't have any material on them (they were just a brown formica), and didn't have any interior pocket system.

• From 1950 to 1953 Fender used a guitar-shaped hard case for the Tele and Pbass nicknamed the "thermometer" case, due to it's unique thermometer shape. This case had a brown covering with a brown plush lining. The case had a bulb shape at the peghead.

The 1950s Fender gig bag, an alternative to the more
expensive rectangle hard shell tweed case.


• Also available from 1951 to the early 1960's, was a Fender gig bag case. These cases are soft, foldable bags, and are brown in color. If you couldn't afford a hard case, this was the alternative.
• From 1953 to mid-1954, this case changed to the "poodle" case. Still shaped like a guitar, the poodle case had one flat side that did not follow the contours of the guitar (this was the side of the case that rested on the ground when the case was set down by the handle). Though this case looks similar for both the Telecaster and Stratocaster, it was not (a Strat won't fit into a Tele poodle case). The interior was a bright red plush shag.

  Click here for a picture of the early "thermometer" and "poodle" style Telecaster cases. These were used from 1950 to early 1954.

• From mid-1954 to early 1956, Fender dropped the guitar shaped case in favor of a rectangle shaped case. The first generation rectangle case used in 1954 was called the "center pocket tweed" case. The interior center pocket not only allowed cord and pick storage, but also supported the neck of the guitar. These cases were covered in lacquer-coated tweed and had a bright red plush shag lining.
• From 1955 to early 1958, the next generation of rectangle case was the "side pocket tweed" case. The same lacquer-coated tweed outside and bright red shag plush lining was used, but the interior pick pocket was moved to the side next to the neck. They also had an interior tag proclaiming the case as a "Koylon" brand case. These cases also had exterior brown leather ends. These cases also had an exterior "Fender" logo thick foil sticker which fell off 99.99% of all surviving cases today.
• From 1958 to mid-1959, the case stayed the same except now the interior was a much shorter burnt orange plush. Also the "Krylon" interior tag is gone. I believe the exterior thick foil sticker is now no longer used.
• Also available starting in the late 1950's to the early 1960's was a brown molded form-fit case. This was a very rare, upper line case with a hard brown molded exterior with a golden brown interior. This case was basically rectangle, but with very rounded corners. This case looks similar to the black molded Fender cases of the 1980's, except this case is brown, thicker, a little shorter in length, and the interior is not blue. This case was primarily available for the Jazzmaster and Jaguar guitars.
• From late-1959 to 1961 the exterior of the Fender case changed. A new material called "Tolex" was now used, in a coffee-with-cream type brown color. Tolex is a rough rubber-like compound that was much more durable than tweed. Brown leather ends stayed the same. The interior burnt-orange plush used from 1958 stayed until 1961 when the interior of the cases changed to a dark orange plush. Click
  here for a picture of the early square style Fender cases from mid 1954 to 1963. This picture includes the "center pocket" tweed case, the "side pocket Koylon" tweed case, the "side pocket burnt orange" tweed case, and the 1962 style "brown" case with the dark orange interior. The only case missing from this photo is the 1959 to 1961 style "brown" case with the lighter colored burnt orange interior.

Left to right: Tweed, brown
tolex, white tolex.

• In late 1963 to mid-1964, the exterior again changed on Fender cases. Now white tolex with black leather ends was the standard. The interior stayed the same dark orange plush.
• In mid-1964, Fender finally moved to a black tolex case with the (same) dark orange interior. This type of case was basically used till the end of the 1970's, with some minor changes (mostly the logo). Mid 1964 to 1966 cases have no exterior "Fender" logo.
• about 1967: Still used the black tolex case, but now the case exterior has a plastic Fender logo with a "tail".

• about 1972: The logo on the black tolex case changes to have no "tail" and a small "R". Also the white piping around the leather case ends becomes more pronouced.
• Mid to late 1970s: The logo on the black tolex case changed yet again. No "tail", a bigger "R" (registered) mark, and a "Made in USA" marking.
• When Fender started making reissues in 1983, they also reissued the tweed case. But now the exterior tweed was considerably "hairer", and was not lacquered. Also the interior was not a short dark orange plush, but was now a long, light colored orange shag.

U.K. Fender cases: Starting around 1961, Jennings Musical Industries of Unity House Dartford Road, Dartford Kent, was the sole Fender distributor in the U.K. The case included with these Fender guitars was a Jennings case, which was similar in dimensions to a California rectangle Fender case, but not as stylish. For example, the Jennings case had no leather ends, and were covered in thin brown vinyl tweed with dark pressed metal corners. The interior was a plush deep wine color, with no lid to the interior "glove compartment". The handle was a smooth plastic-leather over metal. By 1964, Selmer also became a Fender importer. And later, Arbiter also became a Fender distributor in the U.K.

The exterior case logos used through the years. The top logo was used on rectangle Fender tweed cases from about 1956 to early 1958. It is missing on 99.99% of all original tweed cases today. The next three plastic case logos were used through the mid 1960s to thru the 1970s. Second logo from top used in 1967 to 1971 ("tail"). The third logo from the top with no tail and small "R" was used from 1972. The bottom most plastic logo (with "Made in U.S.A." and the "R" symbol) was adopted in the mid to late 1970's.

Fender Serial Numbers, 1950 to Present (Identifying the Year).
